    TA435 Thermal Imaging Scope Clip On Front Attachment

    Ask Lasest Price
    Brand Name : OEM, ODM All Available
    Certification : CE,FC,RoHS
    Delivery Time : 3~7
    Payment Terms : T/T. L/C, Western Union, Money Gram
    Supply Ability : 30000PCS/Month
    Model Number : TA435
    • Product Details
    • Company Profile

    TA435 Thermal Imaging Scope Clip On Front Attachment

    TA435 Thermal Imaging Scope Clip-On Front Attachment


    Parameter:

    ModelTA435TA450
    Detector
    Detector Type400×300 @17μm, VOx
    Spectral8μm~14μm
    Focus lens
    Focal Length35mm F1.250mm F1.2
    FocusingManual focus
    Display system
    OLEDColorful 0.39 inch OLED screen 1024×768
    EyepieceMonocular, Pupil Distance 10mm, Pupil Caliber 20mm
    Digital Zoom1
    Image Processing
    Frame Rate50Hz(PAL)
    Digital Zoom2×,4×
    Auto TrackingHotspot track
    CalibrationAutomatic calibration/ Manual calibration (shutter) /Manual scene compensation
    Power Systems
    BatteryCR123A×2/ICR16340×2
    Power Supplycan be powered by 5V2A external power supply
    Working Time> 3 hours@25°C
    Interface
    7-Pin LEMO InterfaceSupport video output and external power supply
    Environment parameter
    Operating Temperature-30°C-50°C
    StorageTemperature-45°C-70°C
    HumidityWorking and storage10% ~ 95%, Non condensing
    Impact500G/1ms
    IP levelIP67
    CertificateCE/RoHS/FCC Certificate
    Physical Characteristics
    Weight≤400g≤450g
    Size150mm*52mm*57mm178mm*58mm*62mm
    Package
    StandardBlinder, Carrying bag,Charger, User manual, 7-Pin Lemo to USB cable, Warranty

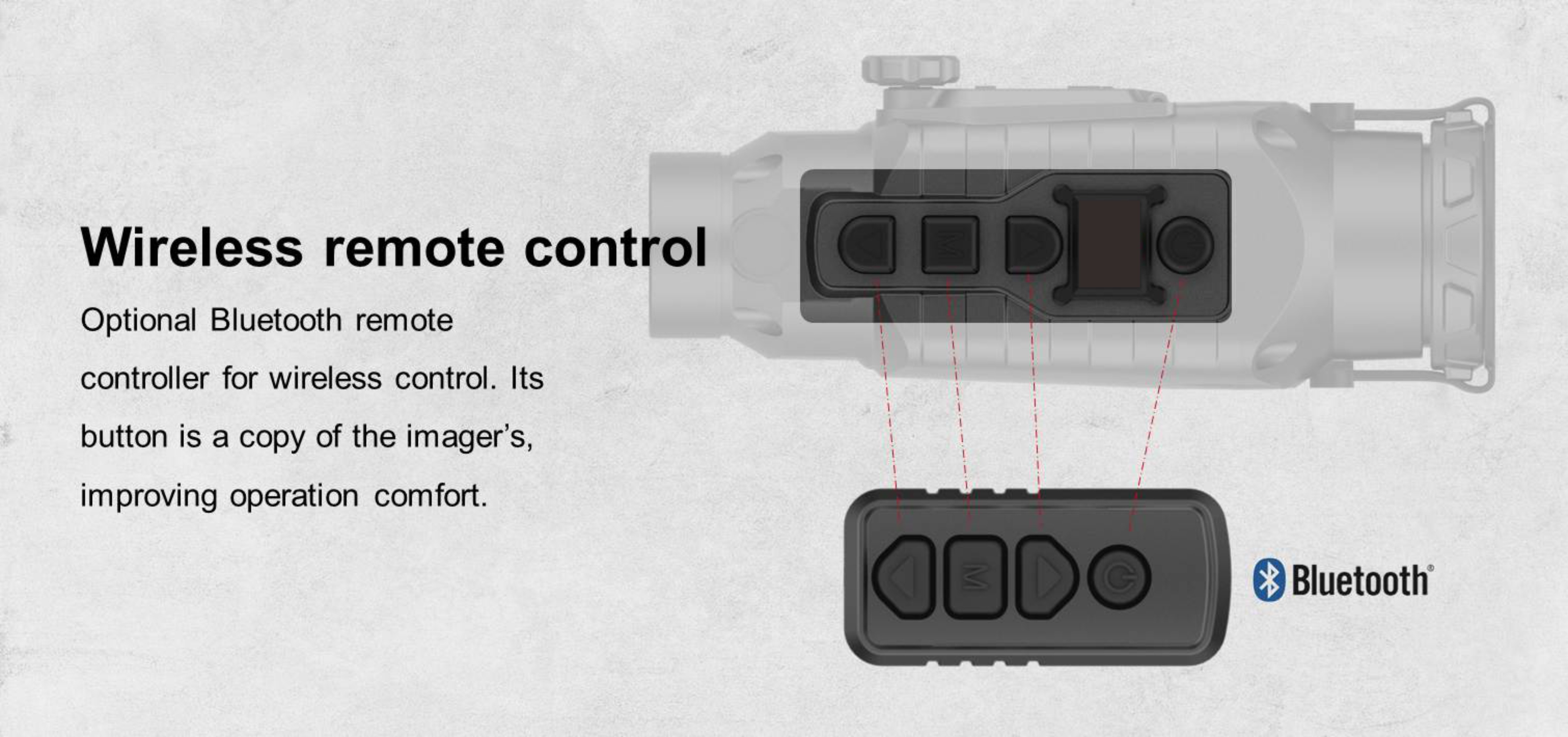

    OptionalExternal eyepiece, Adapter ring, CR123A×2(unrechargeable)battery, ICR16340×2(rechargeable)battery,Bluetooth remote controller,
    Picatinny rail, Charger, Video cable (two in one, power supply & video output)

    Features:

    1.TA435 / TA450 is a versatile clip-on thermal imaging attachment which helps transform the daylight optics into a thermal vision. It can be taken as a thermal imaging attachment adding thermal imaging capability to your scope, or as a portable thermal imaging monocular.


    2.This compact, lightweight and durable device can be quickly mounted and dismounted without re-zeroing, providing excellent image in various environments.
